DS Audio Grand Master Optical Cartridge

Analogue and optical technology master DS Audio has unveiled the new spare-no-expense Grand Master cartridge with dedicated outboard equaliser and power supply.

The new Grand Master cartridge represents DS Audio’s third generation optical technology cartridge and embodies the company’s full engineering powers. A complete reinvention of DS Audio’s LED and ‘Photo-detectors’ technology is implemented independently across the left and right channels. This has resulted in an increased voltage output from the previous flagship DS Master 1’s 40mV to the Grand Master’s 70mV. This re-engineering has also brought about increased channel separation without compromising the cartridge’s high signal-to-noise ratio while actually improving crosstalk to previously unachieved levels.

A new design for the optical ‘shading plate’ utilising 99.9 percent pure beryllium in place of aluminium has reduced the overall weight by 50 percent. So weight has gone from 1.56mg down to 0.74mg. The low effective mass has been quoted as being less than one tenth that of typical MM or MC cartridges.

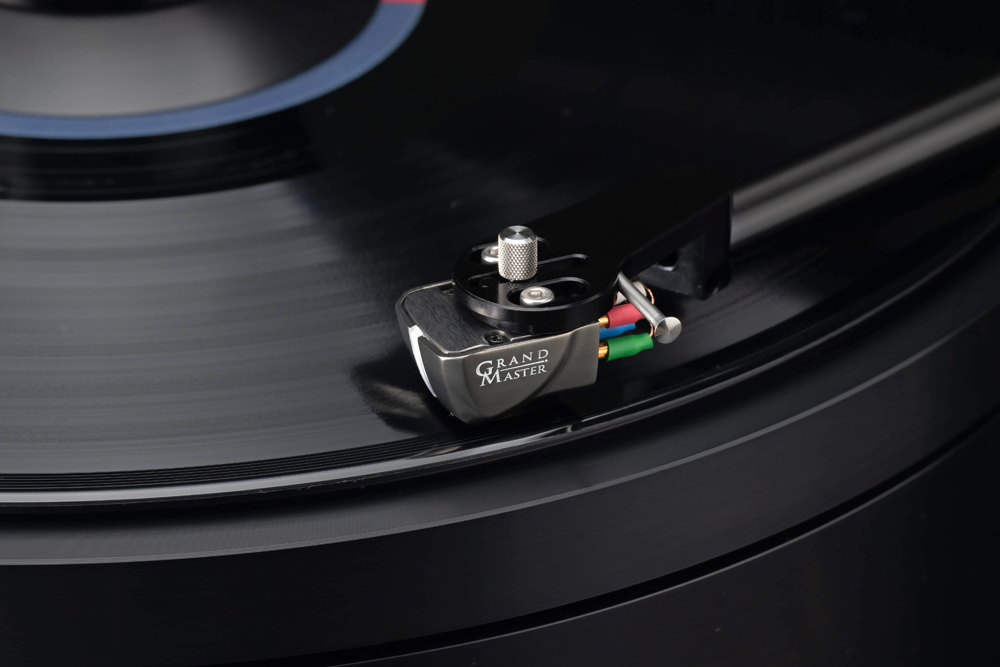

The ‘Ultra Duralumin’ cartridge body itself has been engineered to not only be extremely lightweight but to also be super-rigid and devoid of vibrational distortions. A diamond cantilever with a micro-ridge stylus has been integrated in the design. A reduction in wiring impedance has been achieved by using 1.6 times thicker internal wire gauge.

DS Audio

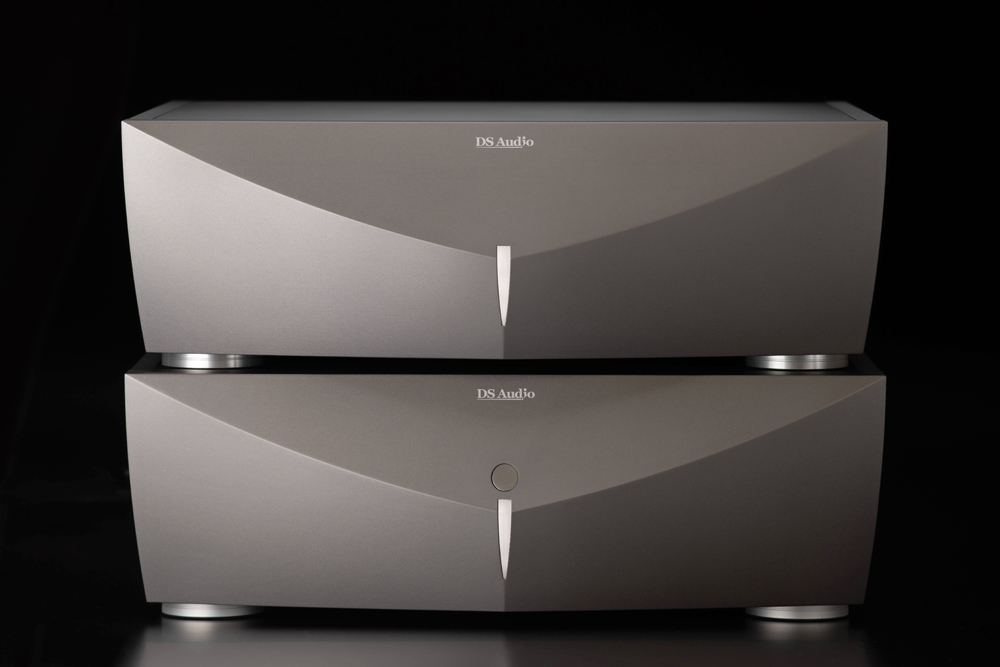

The Grand Master includes separate power supply and equaliser components housed in an attractive matching design. The equaliser chassis houses a staggering 2.34 million uF and incorporates special film capacitors custom-built to DS Audio’s specifications. The power supply ups the storage ante to a massive 2.97 million uF of electrolytic capacitors. According to DS Audio the extreme design has resulted in “… a significantly stronger power supply design and made improved reproduction of deeper low frequencies possible.” The design houses a total of three dedicated transformers, each with a capacity 1.5 times greater than was used in the previous range-topping DS Master 1.

The Grand Master equaliser features both balanced XLR and unbalanced/single-ended RCA output connectivity and a choice of six low frequency cut-off points in order to allow high levels of system matching.

DS Audio

The DS Audio Grand Master will retail in Australia for AU$82,990 and will be available by special order.

DS Audio Grand Master Optical Cartridge
Price: AU$82,990

Australian Distributor: Absolute Hi End
+61 488 777 999
www.absolutehiend.com
